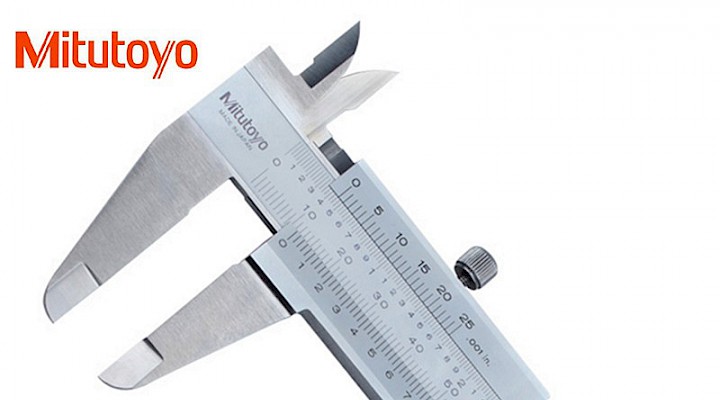

CALIPER MITUTOYO SERIES 530
FEATURES
- Measures OD (outside diameter), ID (inside diameter), depth, and steps.
- The small vernier face angle (14°) provides easy reading.
- Dual reading scales on vernier. (metric/inch and inch models only)
- Lock screw for holding thesliding jaw position.
- Carbide-tipped jaw type calipers are also available.
- Supplied with vinyl holster in fitted carton. Except 600mm / 24” models are carton only. 1000mm / 40” supplied in wooden case.
Technical Data
Graduation: 0.05mm, 0.05mm (1/128”) or .001” (1/128”)
High accuracy type: 0.02mm or 0.02mm (.001”)
MITUTOYO ABSOLUTE DIGIMATIC CALIPER SERIES 500-WITH EXCLUSIVE ABSOLUTE ENCODE TECHNOLOGY
Series 500
FEATURES
Mitutoyo's absolute Digimatic Caliper is the next generation of electronic calipers.
It keeps track of its origin point once set. Whenever turned on, the large LCD
displays the actual slider position ready to start measurement. No more repeated
zero setting is necessary with the absolute encoder technology, as well as no more
concern for over speed errors.
- Large and clear LCD readout.
- The ZERO/ABS key allows the display to be Zero-Set at any slider position along the scale for incremental comparison measurements. This switch will also allow return to the absolute (ABS) coordinate and display of the true position from the origin point (usually jaws-closed point).
- Data Hold Unit (959143) is optional.
- Carbide-tipped jaw type calipers are also available.
- With thumb roller. Except 500-500-10, 500-501-10,500-502-10.
- Supplied in fitted plastic case. Except 1000mm / 40” supplied in wooden case.
Technical Data
Accuracy: Refer to the list of specifications
Resolution: 0.01mm or .0005"/0.01mm
Repeatability: 0.01mm / .0005”
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type
linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use
Function:
Origin-set, Zero-setting, Data output, inch/mm conversion
(inch/mm models ONLY)
Alarm: Low voltage, Counting value composition error

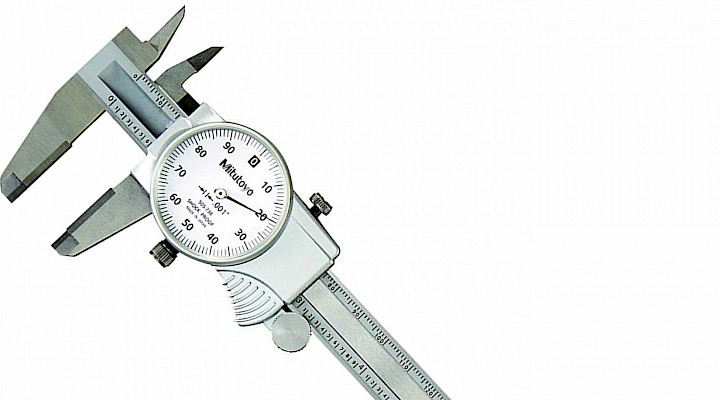

DIAL CALIPERS - SERIES 505
Series 505
FEATURES
- New designed dial movement for ultra smooth sliding and high shock protection.
- Titanium Nitride (TiN) coating is applied to the sliding surface to increase wear resistance(except for 0-300mm and 0-12" model).
- Can measure OD, ID, depth, and steps.
- Lock screw for dial bezel and for holding the slding jaw position .
- Models available with carbide-tipped OD and ID jaws.
- Supplied in fitted plastic case.
BLADE TYPE CALIPER SERIES 573,536-ABSOLUTE DIGIMATIC AND VERNIER TYPE
Series 573
FEATURES
- The thin blade type jaws fit into very small grooves and making previously difficult outside measurements far easier to obtain.
- The OD measuring faces are carbide-tipped.
- With depth bar.
- With SPC data output. (Series 573)
- Supplied in fitted plastic case.
Technical Data
Accuracy: Refer to the list of specifications. (excluding quantizing error for digital models)
Resolution*: 0.01mm or .0005"/0.01mm
Graduation**: 0.05mm
Display*: LCD
Length standard*: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed*: Unlimited
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 3.5 years under normal use
*Digital models **Analog models
Function of Digital Model
Origin-set, Zero-setting, Power On/Off, Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
